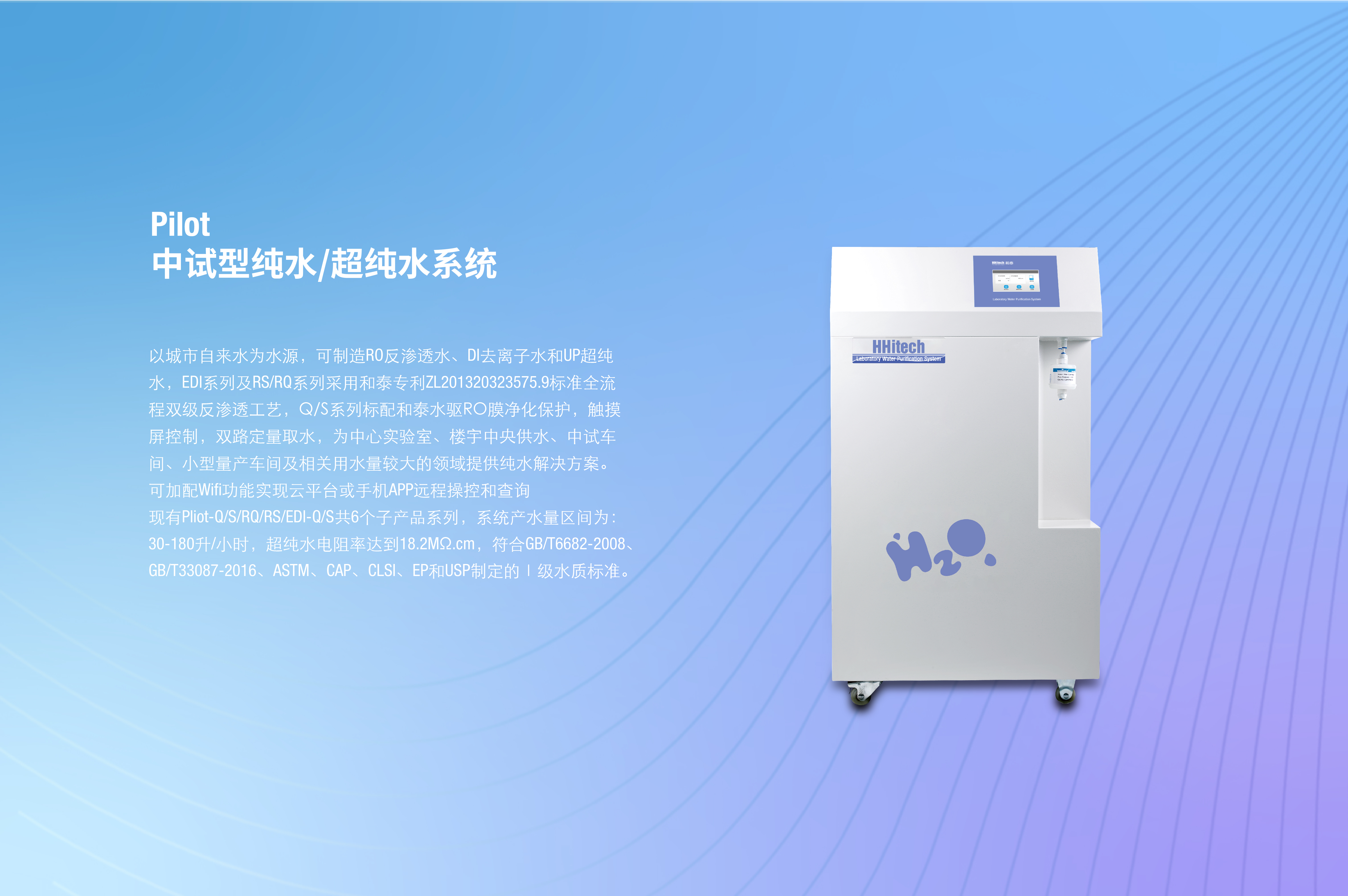

实验室纯水系统

Advantages

Product Features

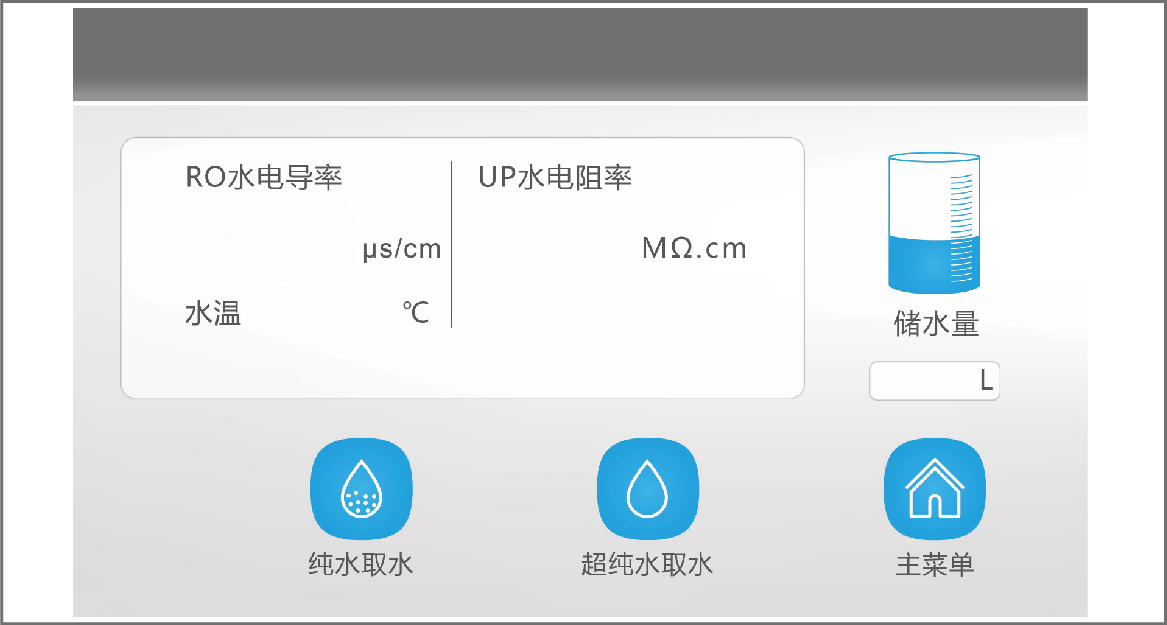

5.0-inch color touch screen

  • Features animated menus for clear system overview and intuitive touch-based experience

3-channel water quality & 2-channel flow monitoring

  • · Provides real-time water quality monitoring of feed, RO, and DI/UP water, making water quality visible without dispensing.
  • ·2-channel high-precision dispensing with configurable volume (10–999999 ml) and resistivity (0–18.25 MΩ·cm).

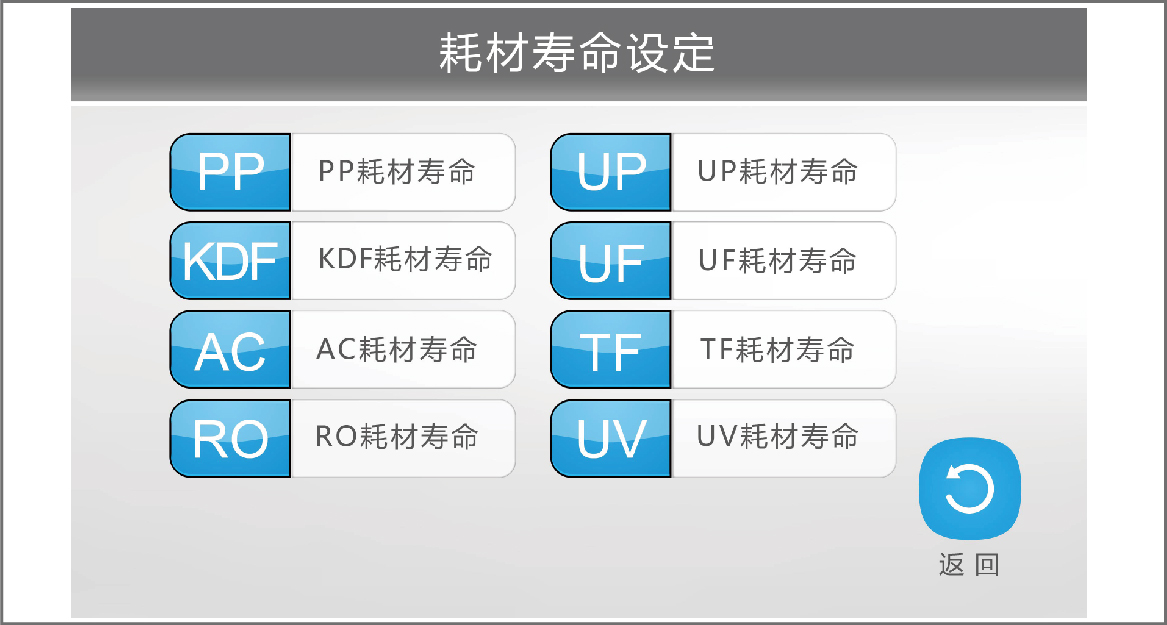

Comprehensive consumables management

  • · Allows for setting service life of PP, KDF, AC, RO, DI, UP, UV, UF, and TF consumables, displays used time and treated water volume, and provides automatic replacement reminders.

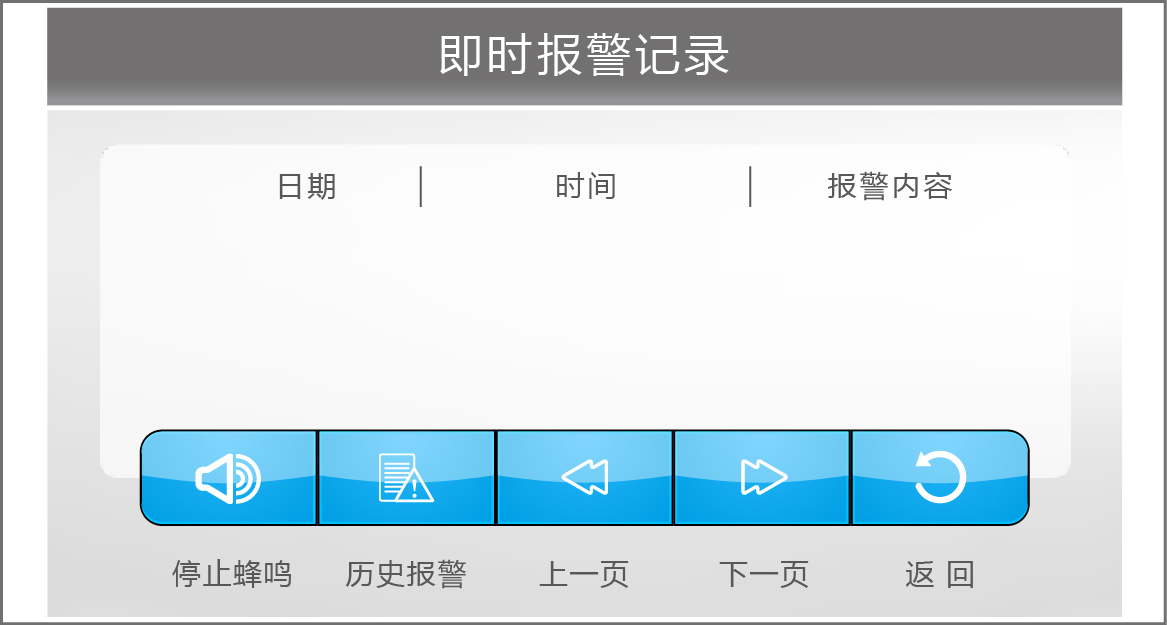

System alarms

  • ·Features automatic detection and alarms for low feed water, full tank, and water quality exceedance (feed, RO, DI/UP water) to ensure safety.

Out-of-spec RO water rejection

  • ·Patented RO water rejection device ensures only in-spec RO water enters subsequent purification stages, maintaining good water quality and extending the service life of downstream cartridges.

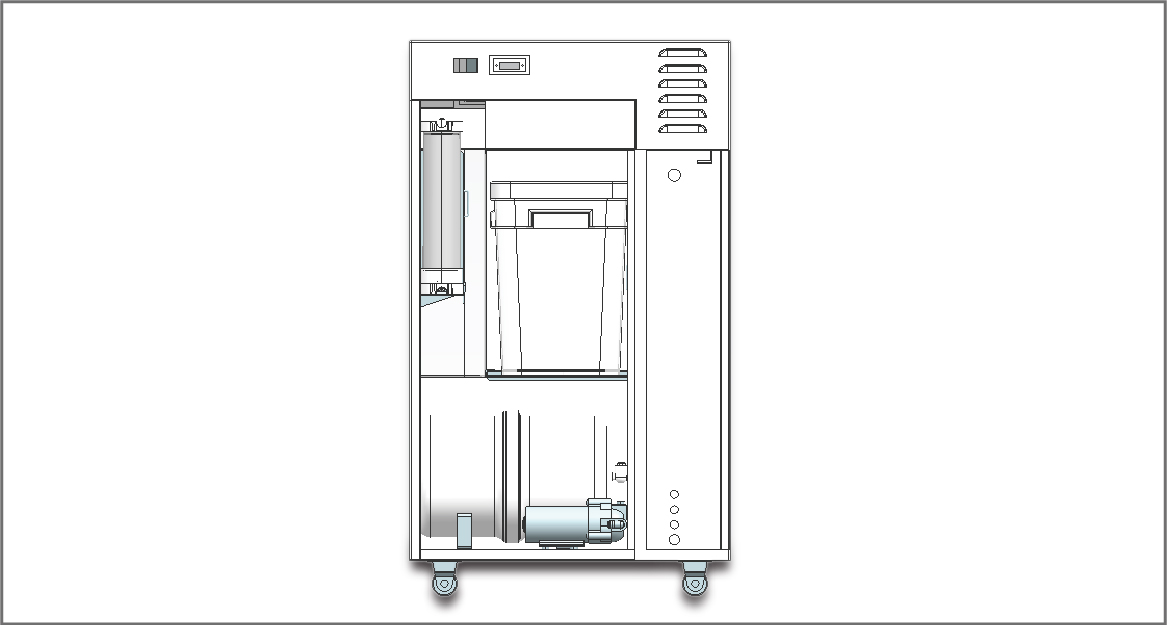

Dual built-in tanks

  • ·Features dual built-in tanks to save lab space and simplify installation and maintenance; compatible with optional external high-capacity tanks to meet varying water demand.

耗材信息

货号 型号 品名 使用寿命/根(估值)
PF41 PC-20PP 20寸PP滤芯 约4-6个月
PF42 PC-20AC-G 20寸颗粒活性炭滤芯 约6个月
PF43 PC-20AC-B 20寸活性炭棒滤芯 约6个月
PF45 PC-20PP-F 20寸折叠PP滤芯 约8-12个月
PF46 PC-20AC-F 20寸碳纤维滤芯 约12个月
PF61 PC-20BPP-F 20寸高通量折叠PP滤芯 约8-12个月
PF62 PC-20BAC-F 20寸高通量碳纤维滤芯 约12个月
RO22 RO-200-35SL 200GPDRO膜 约1-2年
RO03 RO-300-35ST 300GPDRO膜 约1-2年
RO23 RO-300-35SL 300GPDRO膜 约1-2年
RO04 RO-400-35ST 400GPDRO膜 约1-2年
RO56 D-RO-500 500GPDRO膜 约1-2年
RO06 RO-600-35ST 600GPDRO膜 约1-2年
RO07 RO-800-35ST 800GPDRO膜 约1-2年
RO08 RO-1200-35ST 1200GPDRO膜 约1-2年
OF52 PTC-AC-HZB1 有机物纯化柱 约9000升水/柱
IE74 PTC-EDI-HX50 EDI模块 -
IE75 PTC-EDI-HX100 EDI模块 -
IE61 PTC-Pocart4 终端超纯柱 -
IE21 PTC-MBR-12L 12L去离子柱 约20000升水
IE25 PTC-UPPR-12L 12L超纯柱 约20000升水
IE04 PTC-UPPR-K 超纯柱 -
IE54 PTC-MBR20-P 去离子柱组 约22000升水
IE55 PTC-UPPR20-P 超纯柱组 约22000升水
IE22 PTC-MBR-25L 25L去离子纯柱 25升进口精密树脂,约40000升水
IE26 PTC-UPPR-25L 25L超纯柱 25升进口核子树脂,约40000升水
OF03 TF-0.2μm-B 0.2μm进口PES终端滤器 -
OF11 UF-5000D 进口MWCO5000DUF超滤组件 -
OF31 UV-185/254-10W 进口双波长紫外组件 -
OF32 LAMP-185/254-10W 进口双波长紫外灯管 约9000小时
OF33 UV-185/254-14W 进口双波长紫外组件 -
OF34 LAMP-185/254-14W 进口双波长紫外灯 约9000小时

技术支持

Pilot系列使用说明书2026.pdf
下载
