实验室纯水系统

Advantages

Product Features

5.0-inch color touch screen

  • Features animated menus for clear system overview and intuitive touch-based operation.

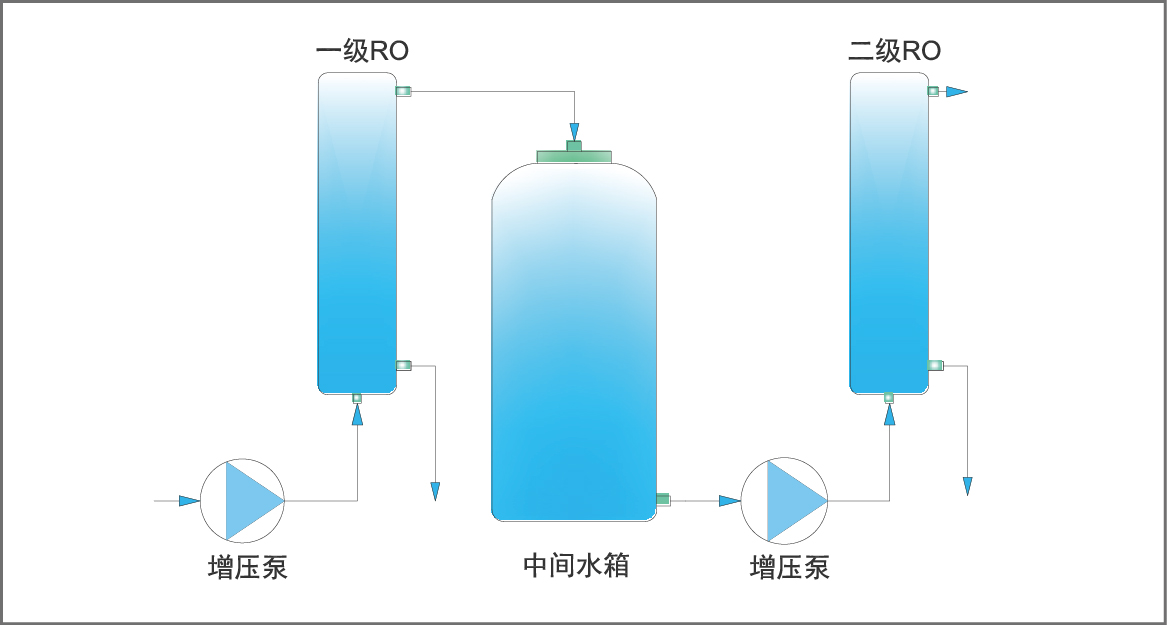

The Lab-optimized standard two-stage RO system

  • ·Utilizes dual pumps, dual membranes, and a buffer tank for reduced energy consumption, lower wastewater production, and consistent pure water quality.

Dual outlets for DI/UP water

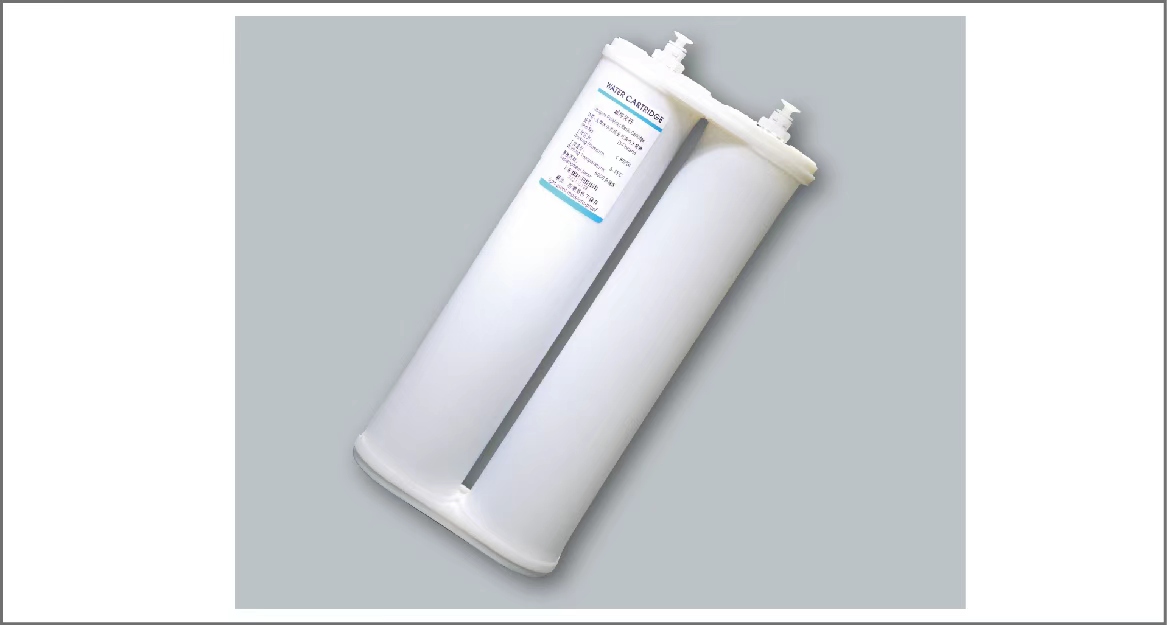

  • · Equipped with polishing and ultrapurification cartridges that deliver DI water (> 16 MΩ·cm) and UP water (18.2 MΩ·cm), compliant with Type I water standards per GB/T 6682-2008, GB/T 33087-2016, ASTM, CAP, CLSI, EP, and USP.

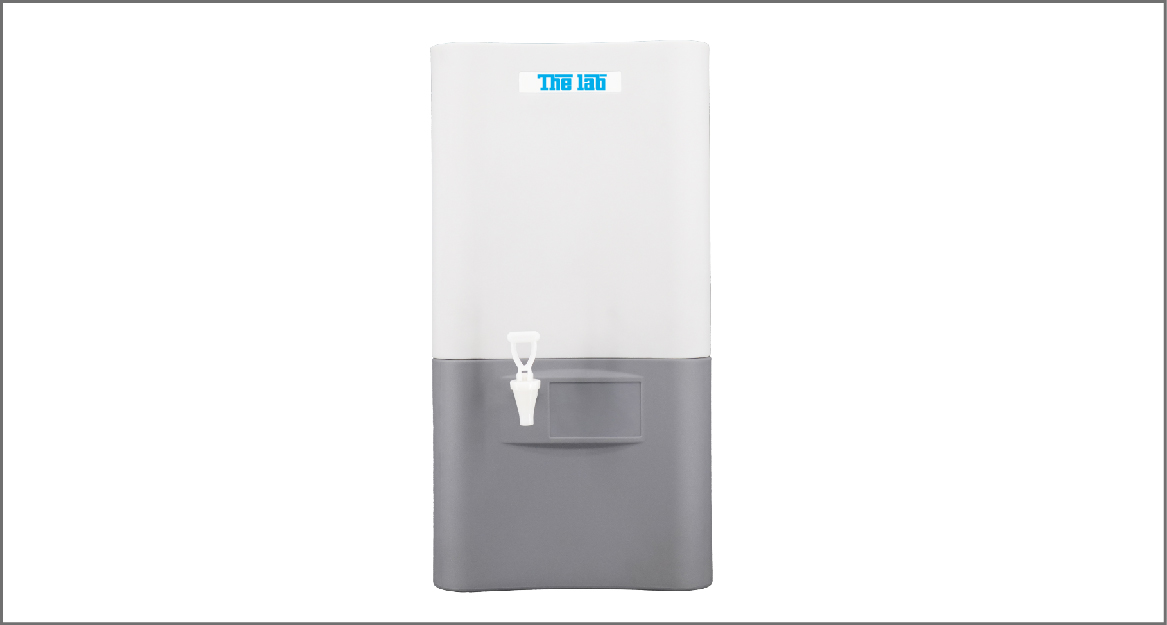

Standard 70L PE pure water tank

  • · Features a cone-bottom polyethylene tank with air filter that absorbs CO2/organics and removes bacteria/particles; compatible with optional UV sterilization module.

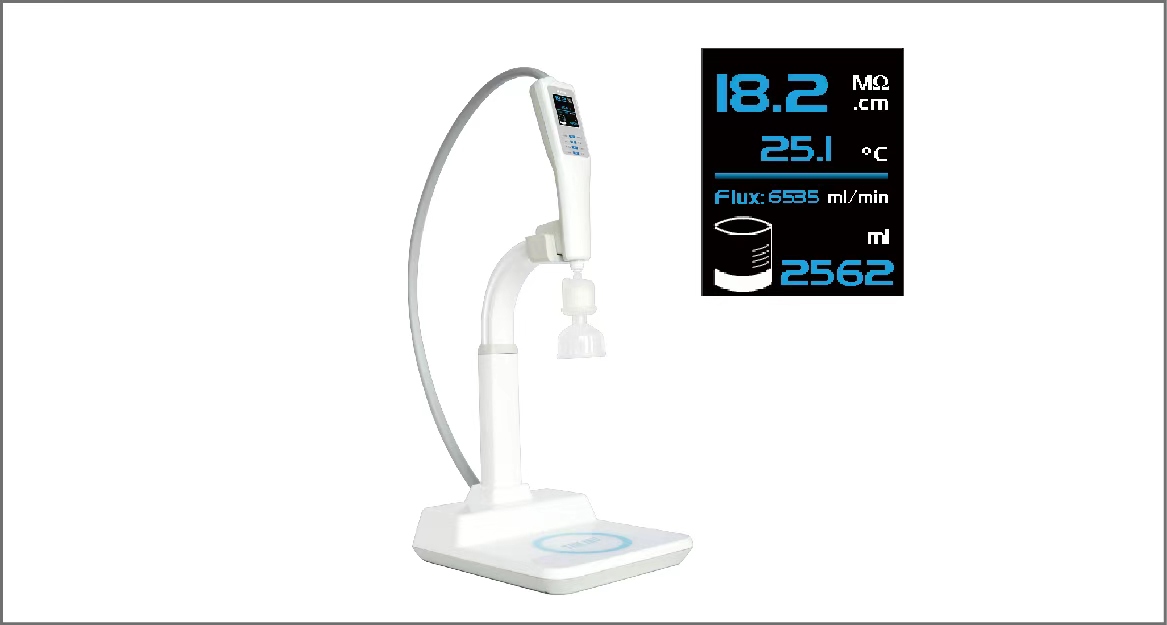

Standard remote mobile dispensing station

  • · Instant and configurable-volume dispensing modes
  • · 2-inch color graphic display showing real-time resistivity, water temperature, flow rate, and dispensed volume;
  • · Height-adjustable for compatibility with common lab glassware and plasticware;
  • · Detachable dispensing handle designed for user-friendly, pipette-style operation;
  • · Integrated circulation loop maintains continuous ultrapure water flow for consistent water quality;
  • · 3-meter dispenser range with 0.9-meter handle reach covers most bench areas.

3-channel water quality & 2-channel flow monitoring

  • · Provides real-time water quality monitoring of RO, DI, and UP water, making water quality visible without dispensing.
  • ·2-channel high-precision dispensing with configurable volume (10–999999 mL) and resistivity (0–18.25 MΩ·cm).

耗材信息

货号 型号 品名 使用寿命/根(估值)
PF71 D-PP1 预处理纯化柱(透明) 4-6个月
PF72 D-AK KDF活性炭复合纯化柱 12个月
PF73 D-AC2 活性炭棒纯化柱 6个月
RO22 RO-200-35SL 200GPD反渗透膜 12-36个月
RO54 D-RO-300 300GPD反渗透膜 12-36个月
IE32 D-Pocart4 超纯化柱 5000升纯水/组
IE31 D-Decart 精密纯化柱 5000升纯水/组
IE52 PTC-UP-MP 超纯柱组 6000升纯水/组
OF32 LAMP-185/254-10W 进口双波长紫外灯管 9000小时
OF11 D-UF5000D 除热原超滤组件 -
OF01 D-Tefit(0.45+0.2μm) (0.45+0.2μm)终端微滤器 -
OF41 AIR FILTER-H10 水箱用空气过滤器 -
