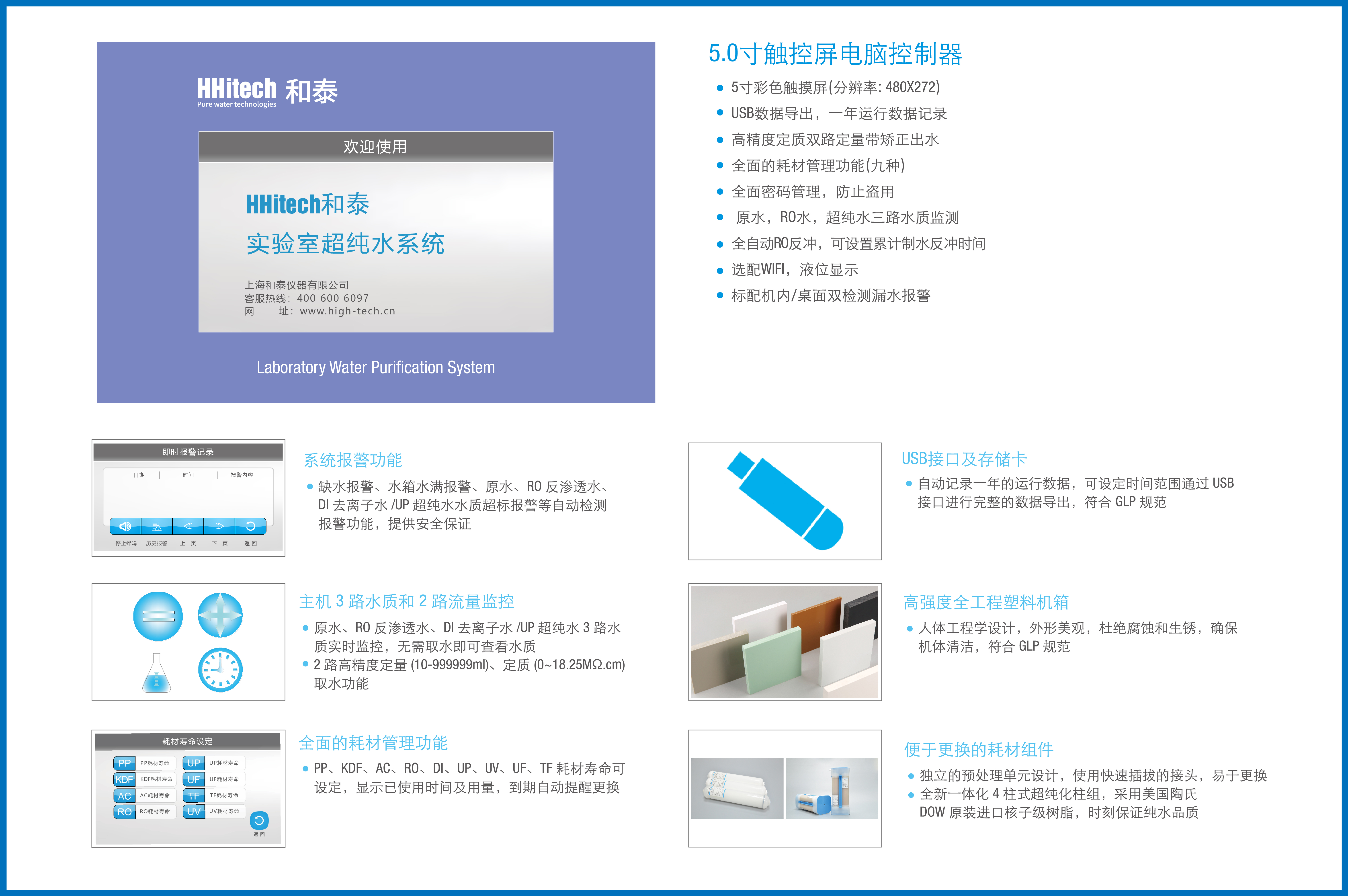

Controller
Flowchart
Technical Parameters
| Model | Master-RQ24/35 | Master-RQ24/35UT |
| Pure water output* | 24/35 L/h | |
| Max. flow rate | 1.2–2.0 L/min | |
| DI water specifications | ||
| Resistivity (25 ℃) | 18.2 MΩ.cm | |
| Heavy metal ions | < 0.1 ppb | |
| Bacteria | N/A | < 0.01 cfu/mL |
| Particles (> 0.2 μm) | N/A | < 1/mL |
| RO water specifications | ||
| 1-stage RO water | Ion rejection rate 98%–99% (new membrane), organic rejection rate > 99% (MW > 200 Daltons), particle/bacteria rejection rate > 99% | |
| 2-stage RO water | Ion rejection rate > 99% (new RO membrane), conductivity ≤ 5 µS/cm, organic/particle/bacteria rejection rate > 99%; conforms to Chinese standard for Type III water quality. | |
| Raw water requirements | Municipal drinking (tap) water; temperature: 5–35 °C; pressure: 1.0–4.0 bar | |
| Dimensions/Weight | 500×364×590 mm (L×W×H)/approx. 26 kg | |
| Electrical requirements | 100–240 V, 50/60 Hz | |
| Power | 120 W | |
| System configuration | Main unit (with 1 set of purification cartridges) + external 15L pressure tank + accessory kit | |
* The value is affected by water temperature, feed water quality, and total contaminant load.
