Controller
Flowchart
Technical Parameters

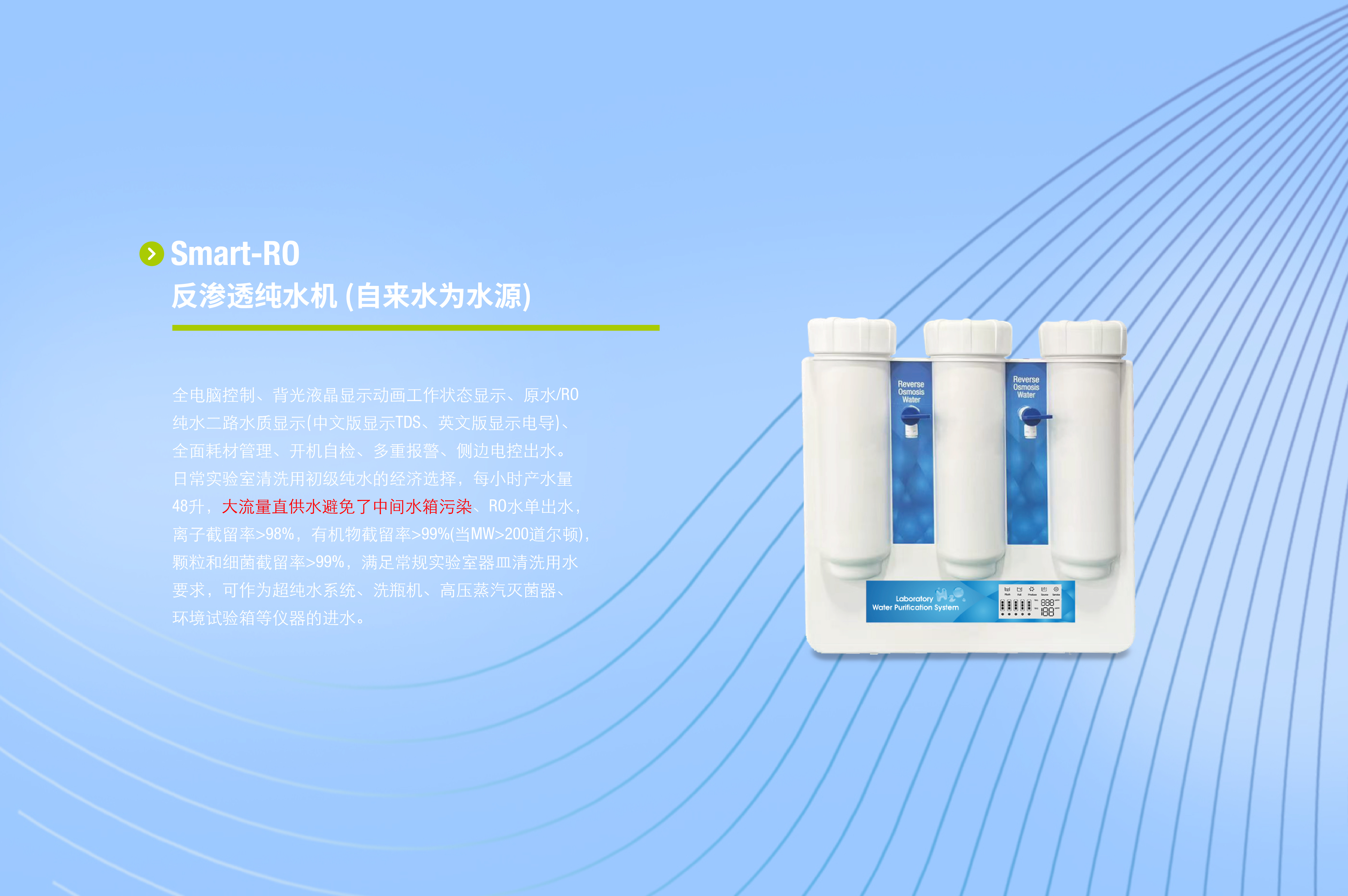

| Model | Smart-RO48 | |||
| Pure water output* | 48 L/h | |||
| Max. flow rate | 1.2–2.0 L/min | |||
| RO water specifications | ||||
| 1-stage RO water | Ion rejection rate 98%–99% (new membrane), organic rejection rate > 99% (MW > 200 Daltons), particle/bacteria rejection rate > 99% | |||
| 2-stage RO water | Ion rejection rate > 99% (new membrane), resistivity: ≥ 0.2 MΩ·cm (25 ℃), conductivity < 5 μS/cm | |||
| Raw water requirements | Municipal drinking (tap) water; temperature: 5–35 °C; pressure: 1.0–4.0 bar | |||
| Dimensions/Weight | 410×220×420 mm (L×W×H)/approx. 18 kg | |||
| Electrical requirements | 100–240 V, 50/60 Hz | |||
| Power | 48 W | |||
| System configuration | Main unit + standard built-in 1.8L pressure tank + accessory kit | |||
* The value is affected by water temperature, feed water quality, and total contaminant load.
