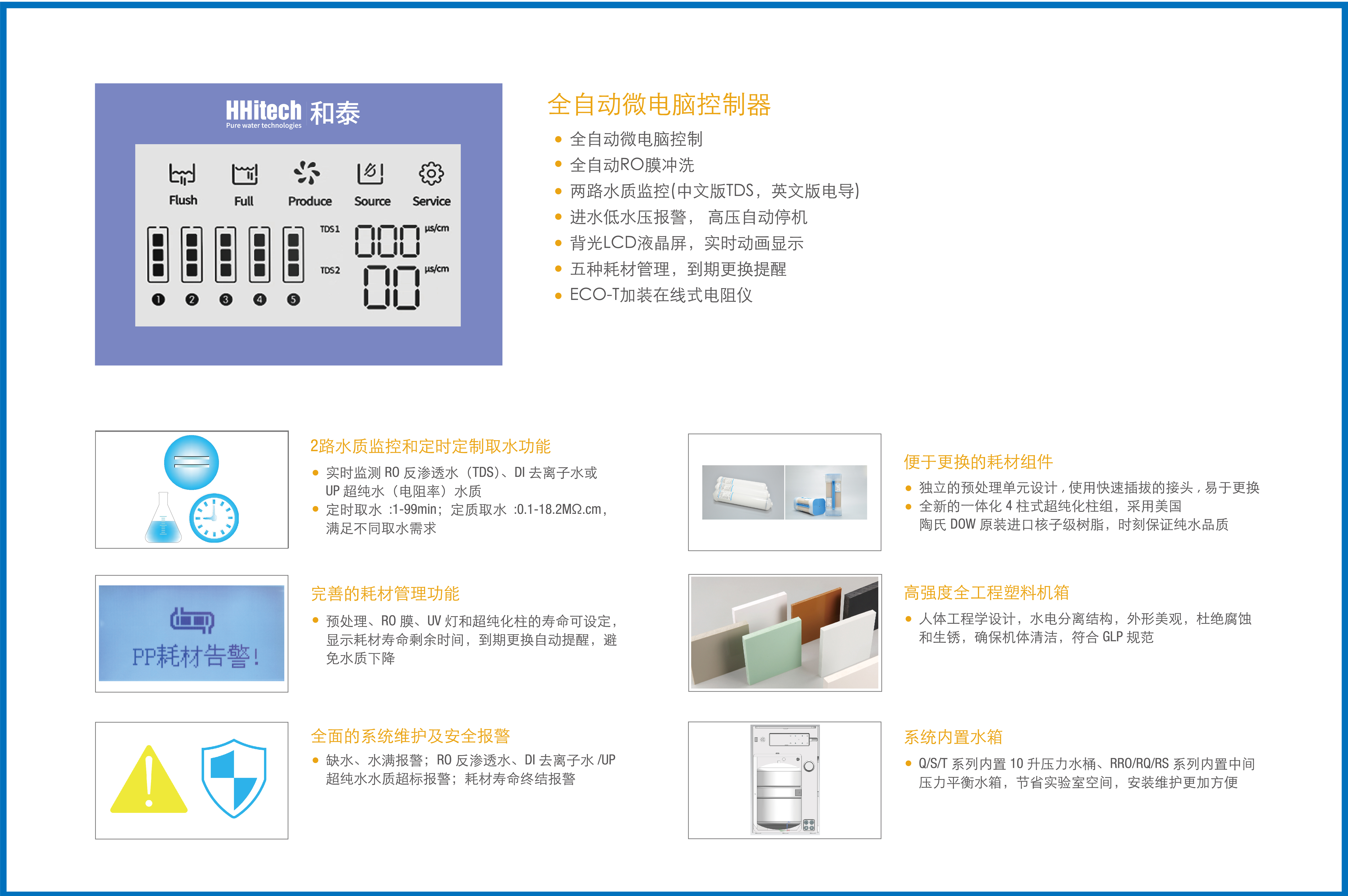

Controller

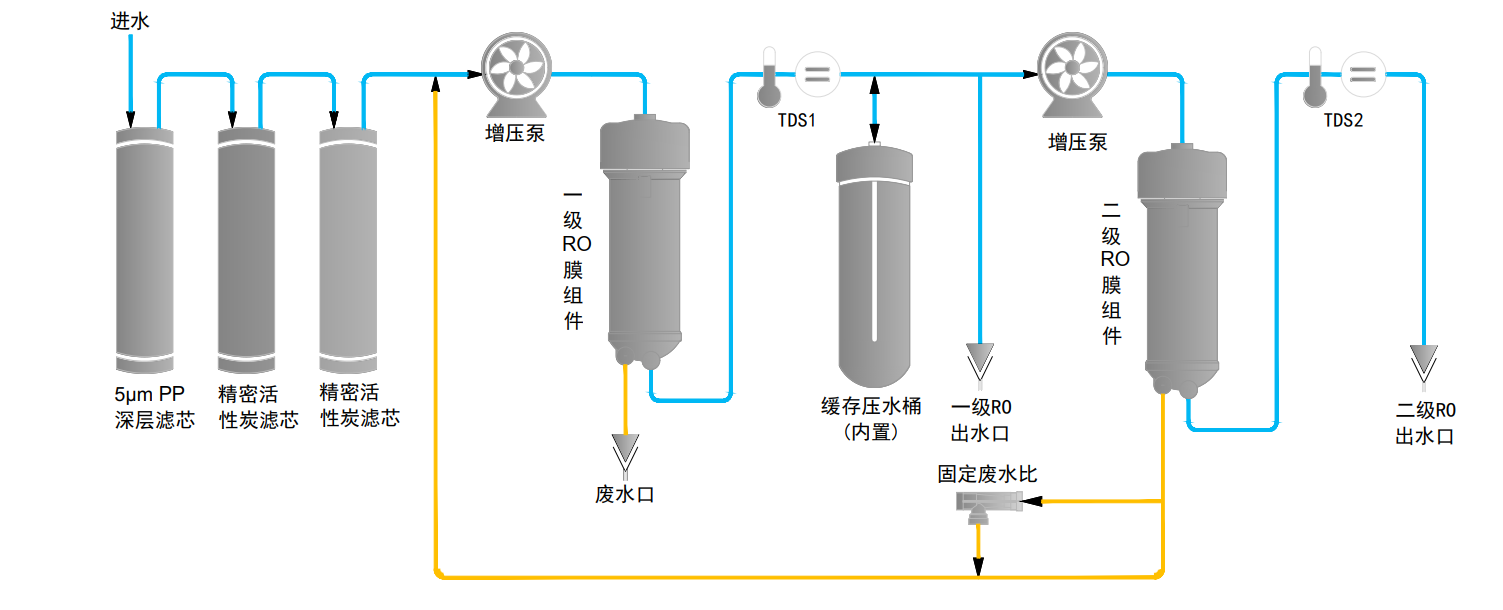

Flowchart
Technical Parameters
| Model | Eco-RRO30 | |
| Pure water output* | 2-stage RO water 30 L/h | |
| Max. flow rate | 1.2–2.0 L/min | |
| RO water specifications | ||
| 1-stage RO water | Ion rejection rate 98%–99% (new membrane), organic rejection rate > 99% (MW > 200 Daltons), particle/bacteria rejection rate > 99% | |
| 2-stage RO water | Ion rejection rate > 99% (new membrane), conductivity ≤ 5 µS/cm, organic/particle/bacteria rejection rate > 99%; conforms to Chinese standard for Type III water quality | |
| Raw water requirements | Municipal drinking (tap) water; temperature: 5–35 °C; pressure: 1.0–4.0 bar | |
| Dimensions/Weight | 340×500×560 mm (L×W×H)/approx. 18 kg | |
| Electrical requirements | 100–240 V, 50/60 Hz | |
| Power | 192 W | |
| System configuration | Main unit + 2 built-in 1.8L pressure tanks + accessory kit | |
* The value is affected by water temperature, feed water quality, and total contaminant load.
