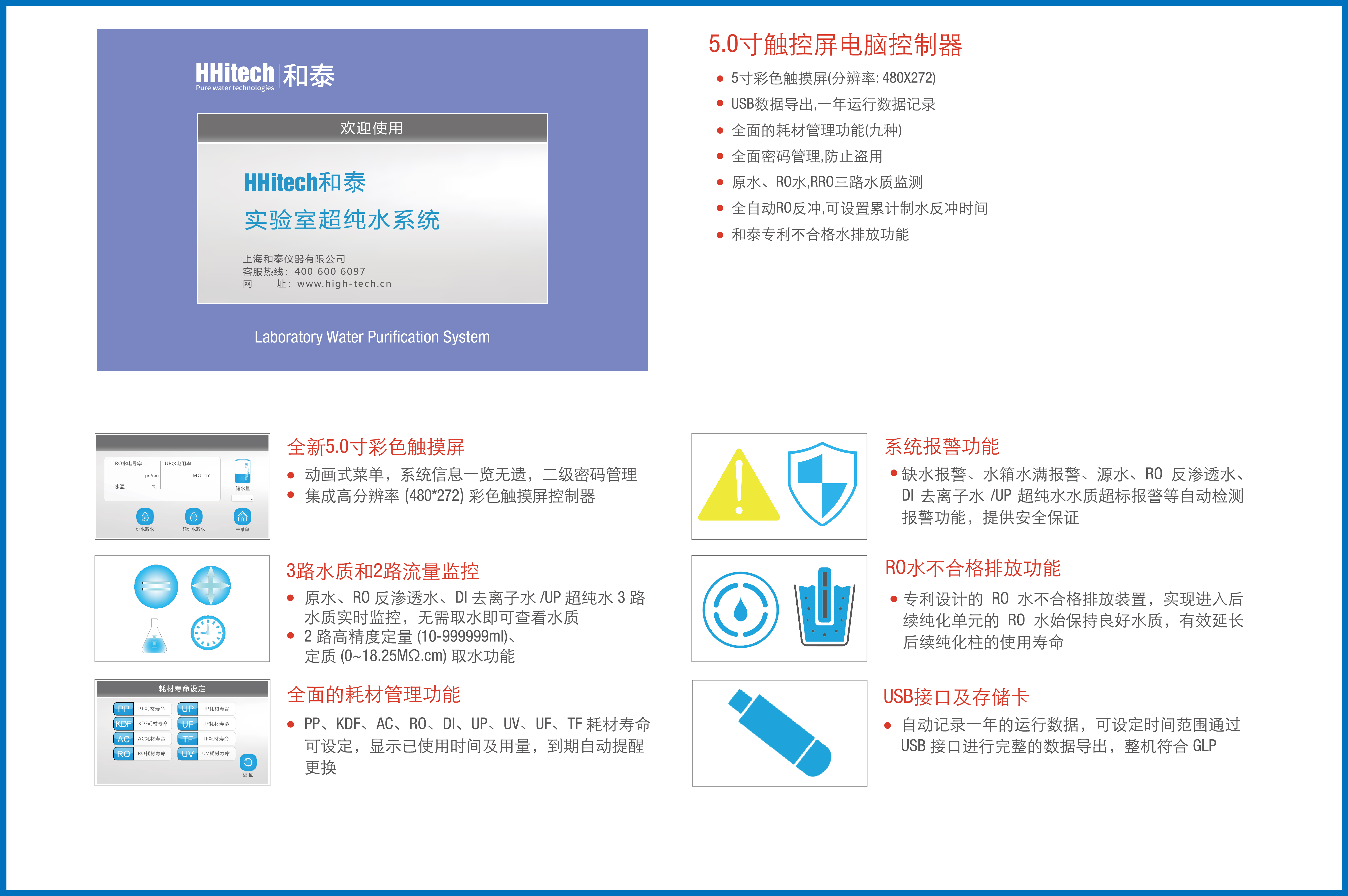

Controller
Pilot Max-RO Flowchart
Pilot Max-RRO Controller
Technical Parameters
| Model | Pilot Max RO500 | Eco-RRO360 | ||
| Pure water output* | 500 L/h | 2-stage RO water 360 L/h | ||
| Max. flow rate | 5–8.3 L/min (with water in tank) | |||
| RO water specifications | ||||
| 1-stage RO water | Ion rejection rate 98%–99% (new membrane), organic rejection rate > 99% (MW > 200 Daltons), particle/bacteria rejection rate > 99% | |||
| 2-stage RO water | Ion rejection rate > 99% (new membrane), conductivity ≤ 5 µS/cm, organic/particle/bacteria rejection rate > 99%; | |||
| Raw water requirements | Municipal drinking (tap) water; temperature: 5–35 °C; pressure: 1.0–4.0 bar | |||
| Dimensions/Weight | 470×790×1820 mm (L×W×H); | |||
| Electrical requirements | AC 220 V, 50 Hz | |||
| Power | 2000 W | |||
| System configuration | Main unit (with 1 set of purification cartridges) + accessory kit | |||
* The value is affected by water temperature, feed water quality, and total contaminant load.
